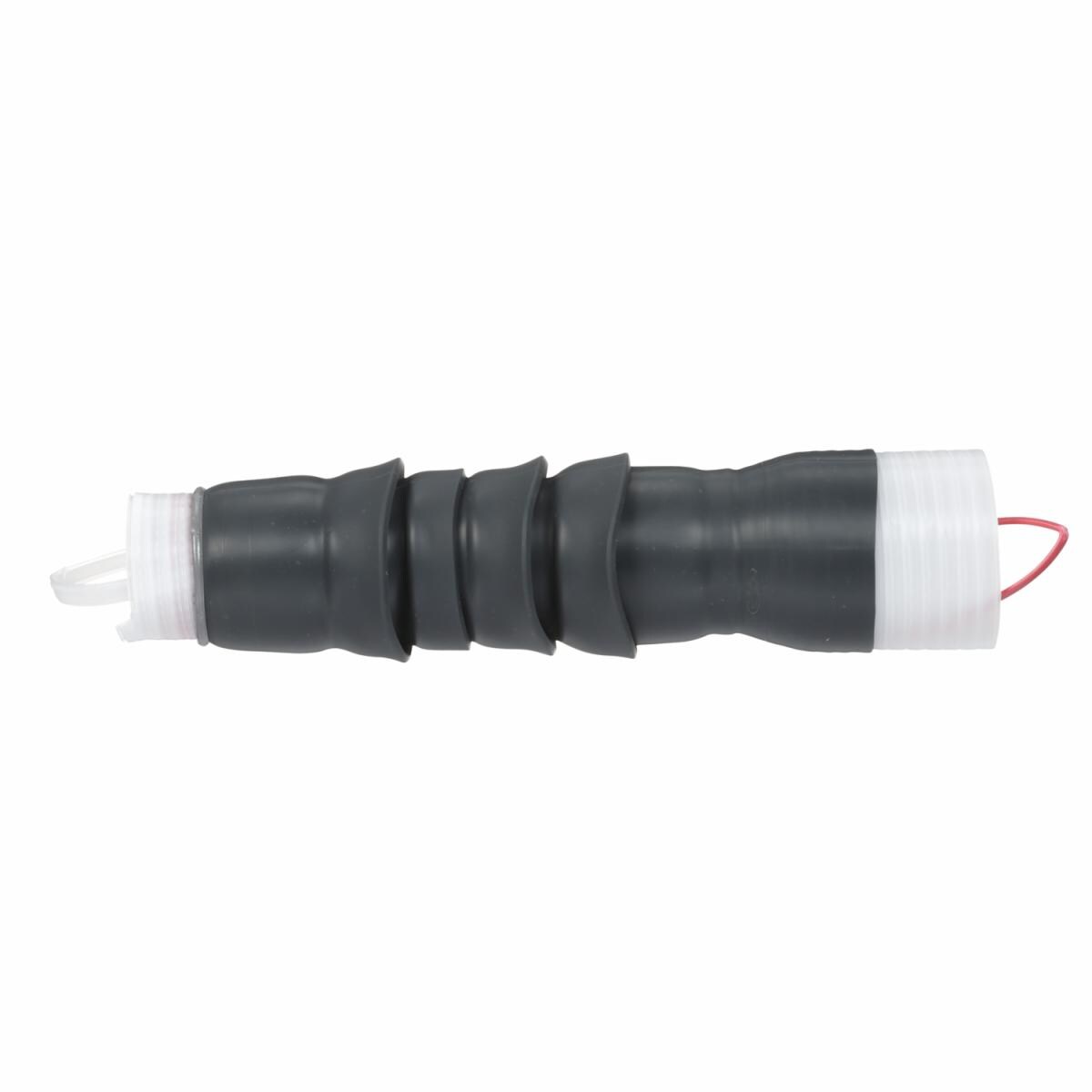

3M™ Cold Shrink QT-III Termination Kit 7655-S-4, CN, JCN Cable, 5-25/28 kV, Insulation OD 1.05-1.80 in, 1/Kit

3M ID 80610920086UPC 50054007422087
  • Provides a void-free seal to jacketed concentric neutral and concentric neutral power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor applications
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
 More...
View all details
Specifications
BIL
150 kV
Brand
3M™
Breakout Boot
No
Cable Insulation Outside Diameter Range (metric)
26.7-45.7 mm
Compatible Lug
QL2-A-350-750, QL2-A-4/0-600
Indoor/Outdoor
Outdoor Skirted
Insulation Level
100%, 133%
Insulation Rejacketing
No
Lug/Stem Connector Included in Kit
No
Number of Conductors
1
Number of Skirts
4
Product Series
7650-S
RoHS 2011/65/EU Compliant
Undetermined
RoHS EU Comments
Contact 3M for information
Shielding Type
Concentric Neutral (CN), Jacketed Concentric Neutral (JCN)
Voltage
15 kV, 25 kV, 5 kV, 8 kV
Voltage Application
Medium Voltage
Details
  • Provides a void-free seal to jacketed concentric neutral and concentric neutral power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor applications
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions

3M™ Cold Shrink QT III 7640 S, 7650 S & 7660 S Series Termination Kit includes a 1 piece, skirted termination. It ensures a pliable, tight seal for jacketed concentric neutral and concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.
